Welcome to PanelCraft Studio, Pune

Premium Grooved Wall Panel Manufacturer

(36 Reviews)

Elevate your interiors with our premium grooved wall panels that create elegant linear patterns and sophisticated textures. Perfect for contemporary spaces seeking clean lines and refined aesthetics.

Material: High-quality MDF, PVC, or Natural Wood
Finish: Matte, Gloss, or Wood Grain options
Panel Size: 8ft x 4ft (Custom sizes available)
Groove Patterns: 15+ designs (Custom spacing available)

Price

₹1,650 - ₹2,250 per sq.ft.

Price varies based on material, groove complexity, and quantity

Product Description

Our premium grooved wall panels feature precisely spaced vertical or horizontal grooves that create a sophisticated linear pattern. These panels add visual interest and texture to any space while maintaining a clean, contemporary aesthetic.

Available in wood, MDF, and PVC options, these panels can be customized with different groove widths, depths, and spacing to create unique patterns. The grooves catch light beautifully, creating subtle shadow effects that change throughout the day.

Ideal for feature walls, ceilings, room dividers, and commercial spaces, our grooved panels bring architectural detail to both residential and commercial interiors including offices, hotels, restaurants, and retail spaces.

Key Features:

  • Creates elegant linear patterns with precise grooves
  • Available in vertical, horizontal, or diagonal groove orientations
  • Customizable groove spacing and depth
  • Paintable surface for custom color matching
  • Durable materials suitable for high-traffic areas
  • Sound-diffusing properties improve acoustics

Residential Applications

  • Feature walls in living and dining areas
  • Headboards in master bedrooms
  • Kitchen backsplashes and islands
  • Powder room accent walls
  • Staircase and hallway walls

Commercial Applications

  • Office reception and conference room walls
  • Restaurant feature walls and bars
  • Hotel lobby and corridor walls
  • Retail store displays and fitting rooms
  • Healthcare facility accent walls

Technical Specifications

Parameter Details
Material MDF, PVC, or Natural Wood (options available)
Thickness 9mm, 12mm (MDF) or 5mm, 8mm (PVC) or 10mm, 15mm (Wood)
Panel Size Standard: 8ft x 4ft (Custom sizes available)
Groove Depth 3mm to 10mm (varies by design)
Groove Spacing 10mm to 50mm (custom spacing available)
Weight MDF: 11-15 kg per panel, PVC: 3-6 kg per panel, Wood: 8-12 kg per panel
Fire Rating Class B (Standard), Class A available
Installation Method Adhesive application or mechanical fixing

Installation Guide

Our grooved wall panels are designed for straightforward installation. PVC panels are lightweight and suitable for DIY projects, while MDF and wood panels may benefit from professional installation.

Surface Preparation

  • Ensure the wall surface is clean, dry, and structurally sound
  • For best results, install over smooth, painted drywall or plaster
  • Use a level to mark reference lines on the wall to ensure straight installation
  • Acclimate wood and MDF panels to room temperature for 48 hours before installation

Installation Methods

1. Adhesive Method (Recommended for PVC)

  • Apply high-strength construction adhesive in zigzag pattern on back of panel
  • Align panel carefully with reference lines and press firmly against wall
  • Use temporary bracing if needed until adhesive sets (24 hours)
  • For wood/MDF panels, consider using adhesive plus mechanical fasteners

2. Mechanical Fixing Method (Recommended for MDF/Wood)

  • Pre-drill panels through the grooves to prevent splitting
  • Use appropriate screws or nails (stainless steel recommended)
  • Countersink fasteners into grooves and fill with matching putty
  • Space fasteners every 12-16 inches along studs or solid backing

Finishing Touches

  • Fill any gaps with color-matched caulk for seamless look
  • For unpainted wood panels, apply protective finish as needed
  • Clean with soft brush or dry cloth - avoid abrasive cleaners
  • For painted panels, touch up any installation marks

Customer Reviews

4.6 out of 5

Based on 36 reviews

5 stars
70%
4 stars
20%
3 stars
8%
2 stars
2%
1 star
0%

Write a Review

Rahul Mehta

May 12, 2023

Used these grooved panels for our office reception area and they've transformed the space completely. The vertical grooves create an elegant, professional look that clients always compliment. Installation was straightforward with the adhesive method.

Priya Sharma

April 28, 2023

The wood grain grooved panels in our dining room look absolutely stunning. They catch the light beautifully throughout the day. Only giving 4 stars because the wood panels required professional installation, but the end result was worth it.

Arjun Patel

March 15, 2023

Installed the PVC grooved panels in my retail store as a feature wall behind the checkout counter. The horizontal grooves create a modern, sophisticated look that complements our brand perfectly. Very easy to install and maintain.

Related Wall Panel Products

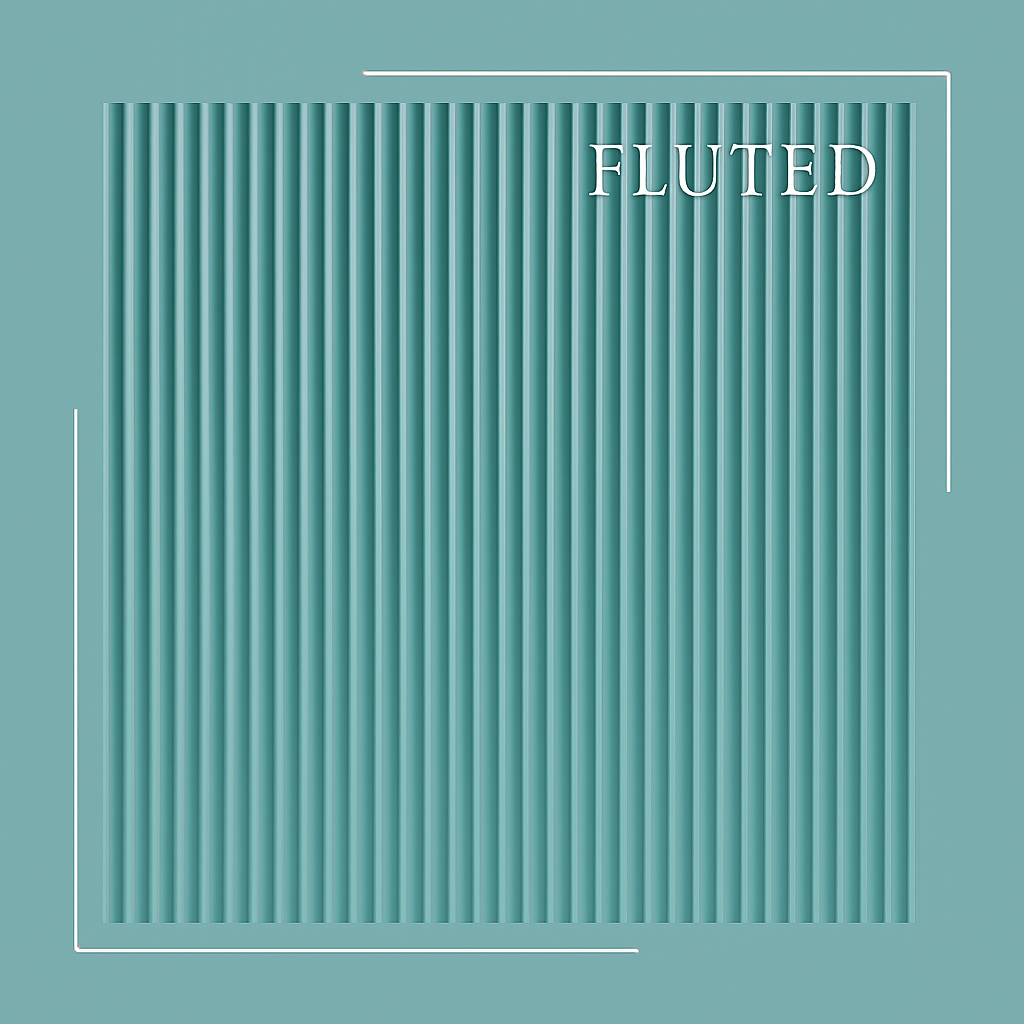

Fluted Wall Panels
POPULAR

Fluted Wall Panels

(24)

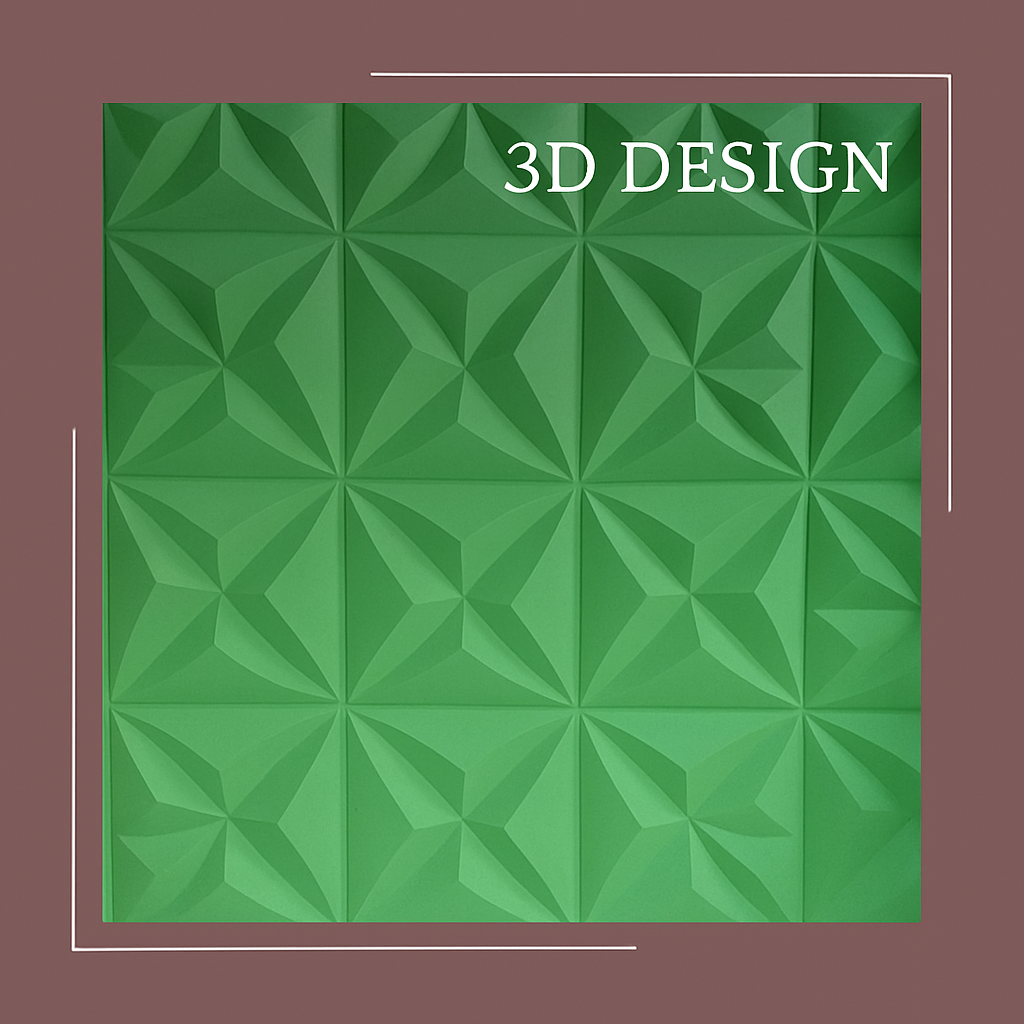

3D Wall Panel

3D Wall Panel

(42)

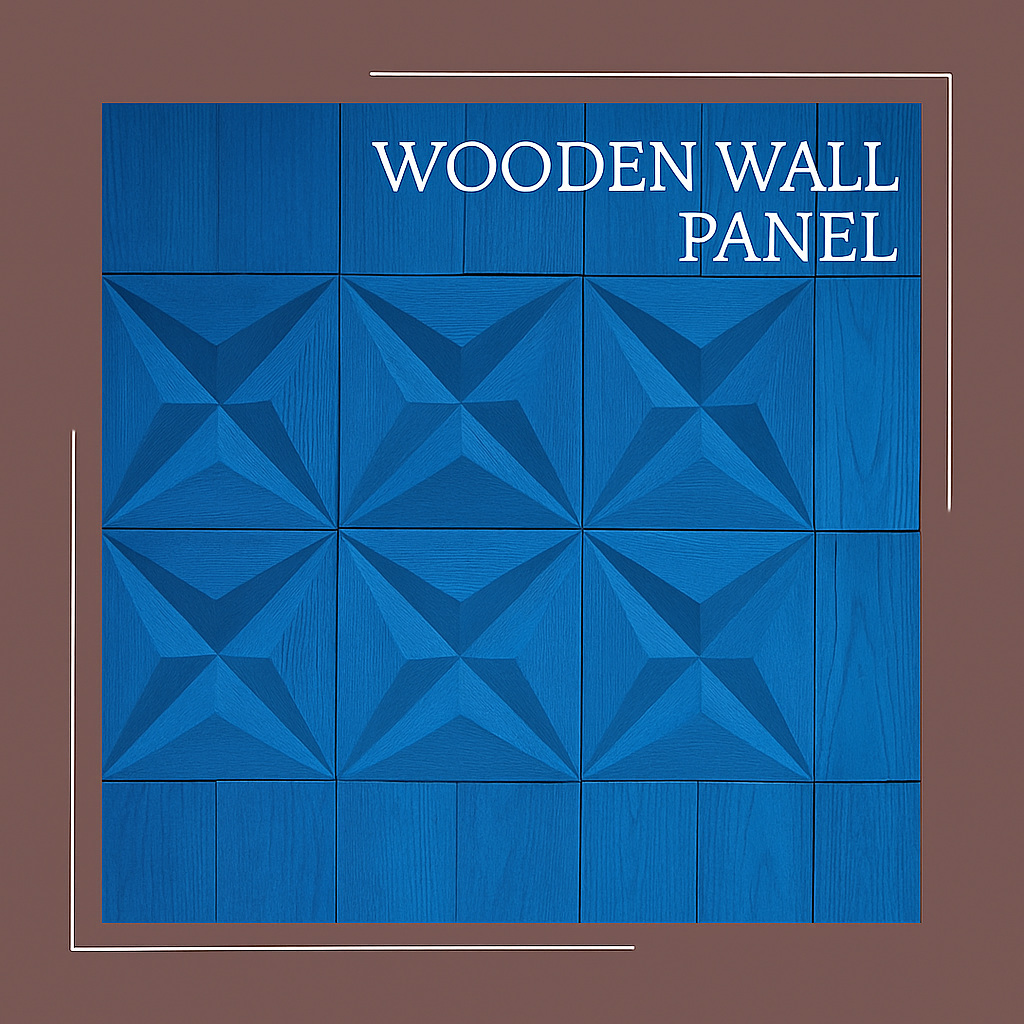

Wooden Wall Panels

Wooden Wall Panels

(29)

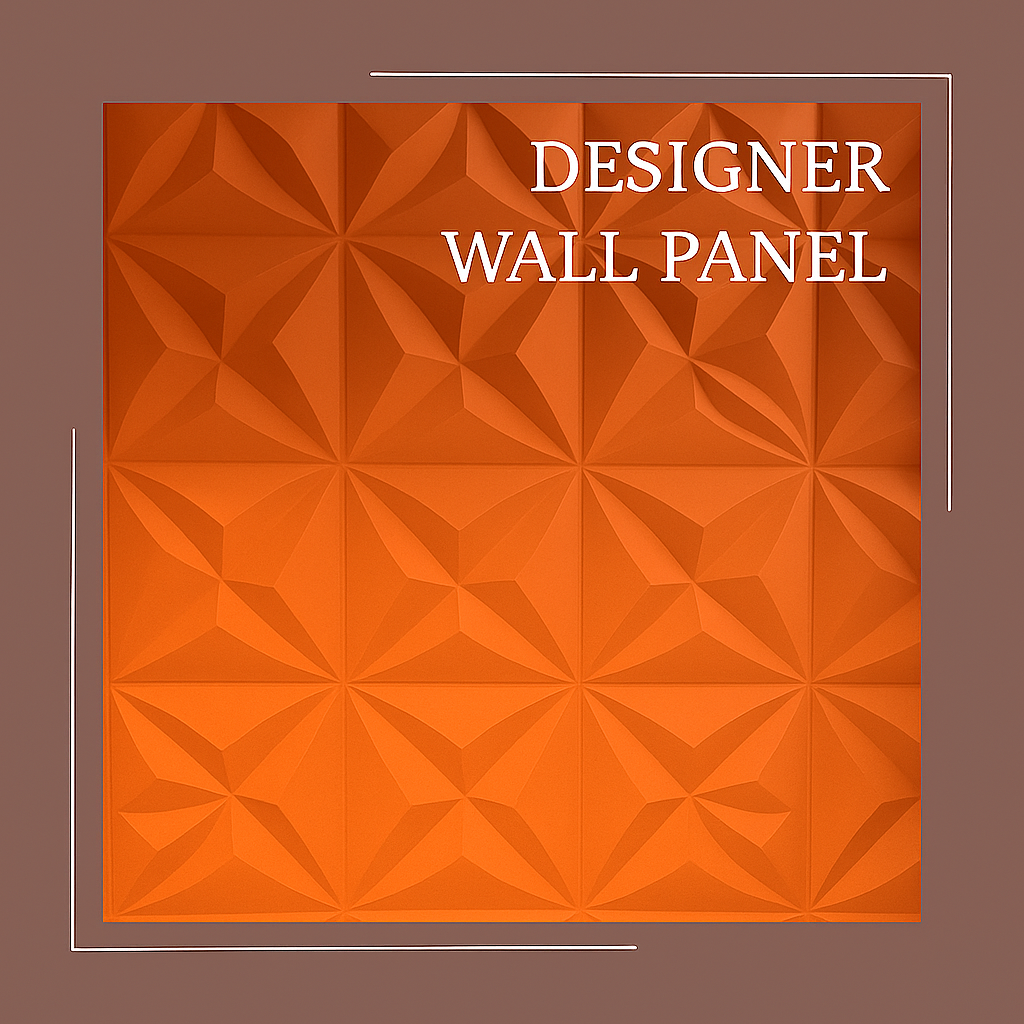

Designer Wall Panel
